उत्पाद विवरण:

Place of Origin: Guangdong
ब्रांड नाम: BUNGE
प्रमाणन: ISO9001
Model Number: Series 65 mm wooden partition walls

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 10 squaremeters
मूल्य: 70/ 105 dollars per square meter
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 squaremeters per month
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी

Material: MDF+Aluminum Application: Office,conference room
Thickness: 65 mm(2 9/16 inch) Finishing: Melamine,fabric,leather
Position: Interior Service: OEM ODM
Feature: Voice Insulation Color: Color Selective (Customized)
Panel width: 500 mm--1220 mm Style: Sliding
हाई लाइट:

acoustic operable wall

,

movable acoustic partition walls

उत्पाद विवरण

Interior Movable Sound Proof Folding Wooden Partition Wall For Function Room

Function Room Interior Movable Sound Proof Folding Wooden Partition Walls



Features:

Movable walls are specified where functional space delineation is an integral element within the partition project.



Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.



Partition door mechanism structure

To create a better sound insulation movable partition door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand " Owens Corning" which is the best sound insulation cotton manufacturer.

Interior Movable Sound Proof Folding Wooden Partition Wall For Function Room 0

Bunge Operable Wall Systems-Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

Interior Movable Sound Proof Folding Wooden Partition Wall For Function Room 1



2,FIXING

Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.

Interior Movable Sound Proof Folding Wooden Partition Wall For Function Room 2



Common Applications:

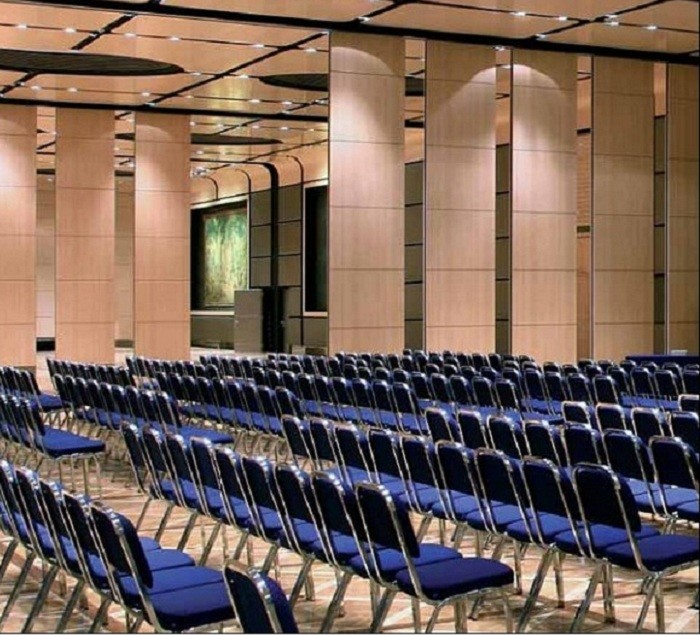

Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.

Interior Movable Sound Proof Folding Wooden Partition Wall For Function Room 3
