• Temporary wall partitions Hotel Acoustic Fabric Panels For Room Dividers
Temporary wall partitions Hotel Acoustic Fabric Panels For Room Dividers

Temporary wall partitions Hotel Acoustic Fabric Panels For Room Dividers

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: BUNGE
Model Number: Type80

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 10 Square Meters
मूल्य: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी

Material: Wall Paper , Fabric , Leather Open Style: Movable And Operable Partition System
Thickness: 80mm Height: 2000 - 6000mm
Acoustic Rating dB STC: 36 / 42 Application: hotel , hall .meeting room and restaurant
हाई लाइट:

conference room dividers

,

sound proof room divider

उत्पाद विवरण

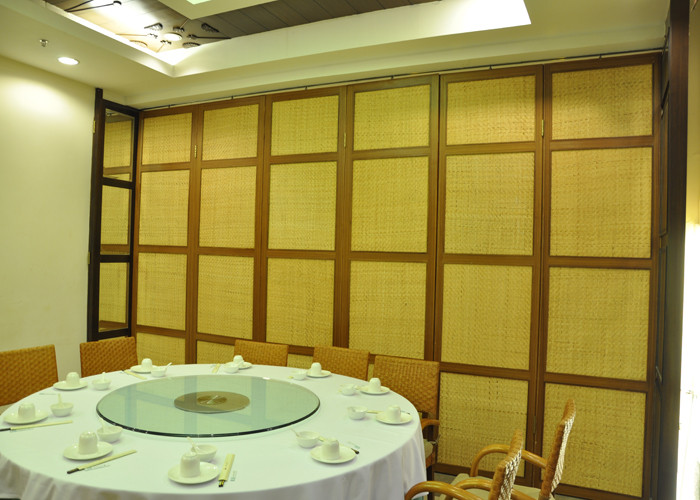

Temporary wall partitions Hotel Acoustic Fabric Panels For Room Dividers




Temporary wall partitions ,  Office  Aluminum Sliding Doors , For Room Dividers



Specifications

Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 6000mm

Sound proof

36 - 42 db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25 – 42 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual



Panel Surface Finish

The panel surface will be as per the clients requirement finished either in BUNGE factory  –  China or by others . The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc .)

Retractable mechanism

The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode .  Single crank type mechanisms shall activate floor and head seals.


Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.


Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .


Trolley

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .


Applications :
Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .


Stacking :

The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
